Products Description:

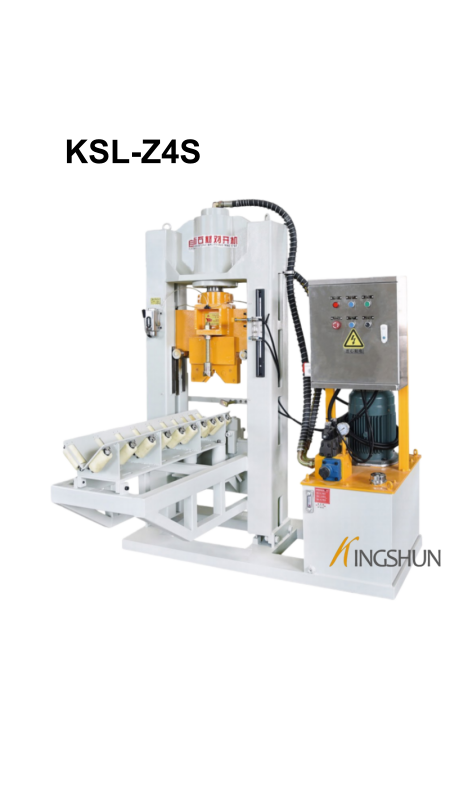

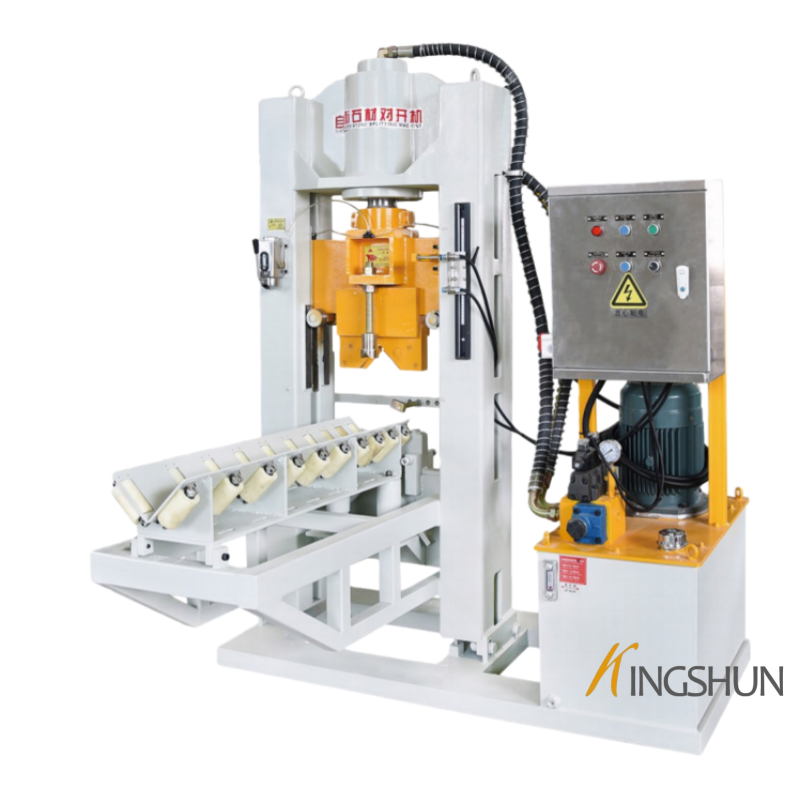

This hydraulic stone splitting machine KSL-24s has an automatic conveyor mechanism, suitable for the process of processing long stone strips that have been sawn and need to be fed continuously into square blocks of stone, with an infrared sensor controlling the thickness of the split, which is easy to adjust and highly efficient.Designed with hydraulic drive, it can split square paving stones into cubes or blocks with antique appearance. Natural stone splitter is an efficient machine for producing cubic paving stone.
Interested in learning more?
Fill out our quick inquiry form and we'll get back to you with all the details right away!
Products Details:
Specification：
|
Model |
KSL-24s |
|

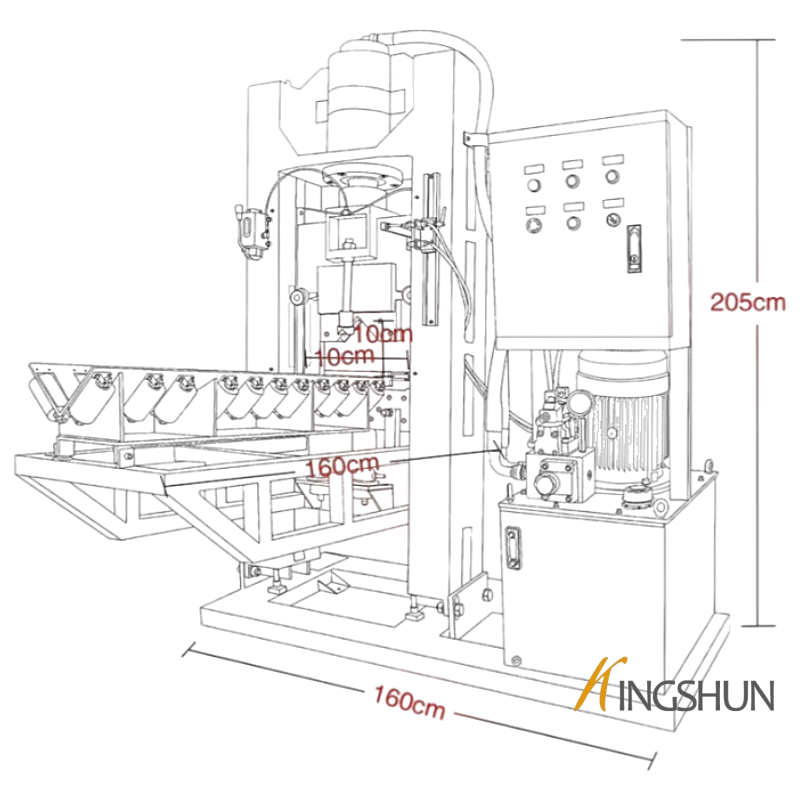

Dimensions(L×W×H) |
160X160X205CM |
|
Weight |
1T |
|
Power |
5.5KW |
|
Voltage |
380V |
|
Frequency |
50Hz |
|
Flow Rate |
32L |
|
Pressure |
50T |
|
Blade Feeding Speed |
5CM/S |
|
Max Working Height |
20CM |
|
Max Working Width |
20CM |
|
Output/Hour |
18M2 |
|
Hydraulic Oil Grade |
46# |
|
Oil Tank Capacity |
78KG |
|
Gross Weight |
1.05T |
