Products Description:

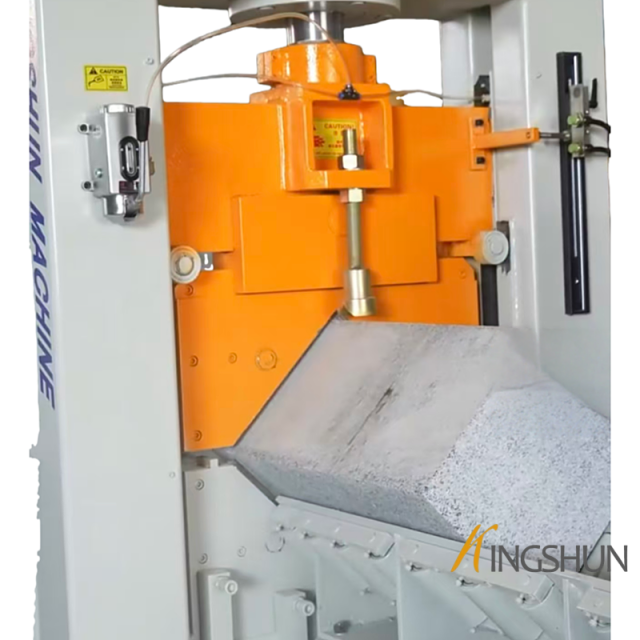

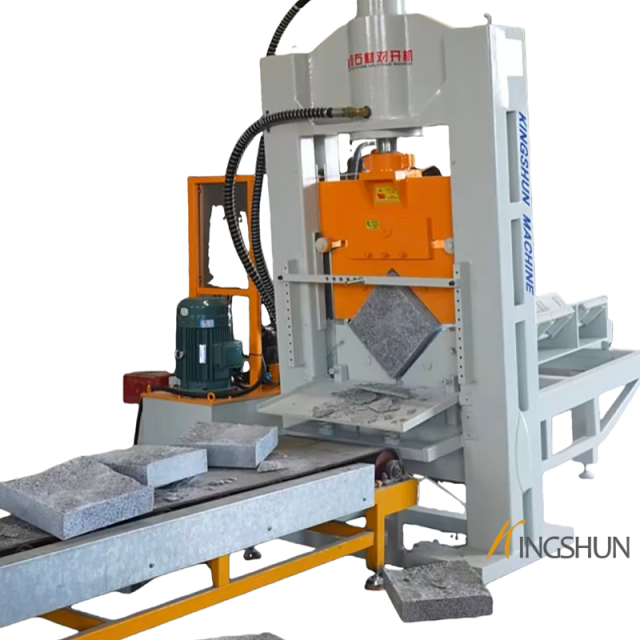

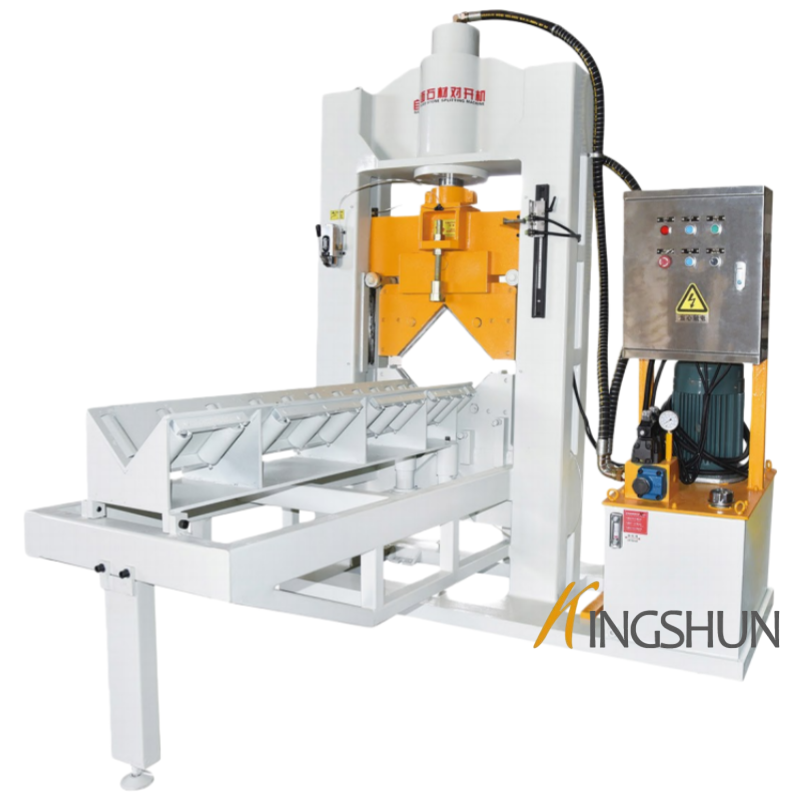

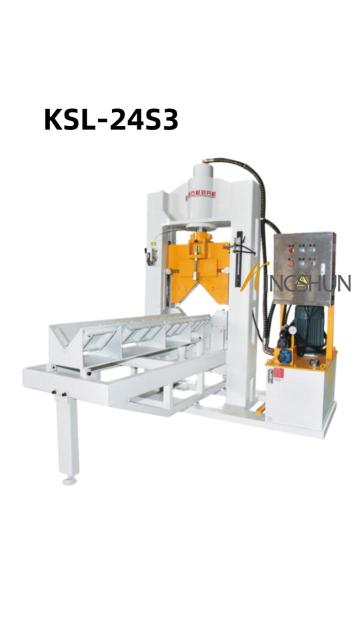

The hydraulic stone splitting machine KSL-24S3 is designed to efficiently split square column stones into uniform blocks or rustic-looking paving stones, making it ideal for producing cubic paving stones. Featuring an open frame design, it allows for easy maintenance and quick access to components. Built from sturdy cast iron and high-quality parts, the machine ensures stability and durability during operation. Its rapid lifting motion significantly boosts work efficiency, while the heat-treated, high-carbon steel chisels deliver superior cracks consistently with every use.
Interested in learning more?
Fill out our quick inquiry form and we'll get back to you with all the details right away!
Products Details:
S3 stands for four-blade 300x300 self sliding
Specification：
|
Model |
KSL-24S3 |
|

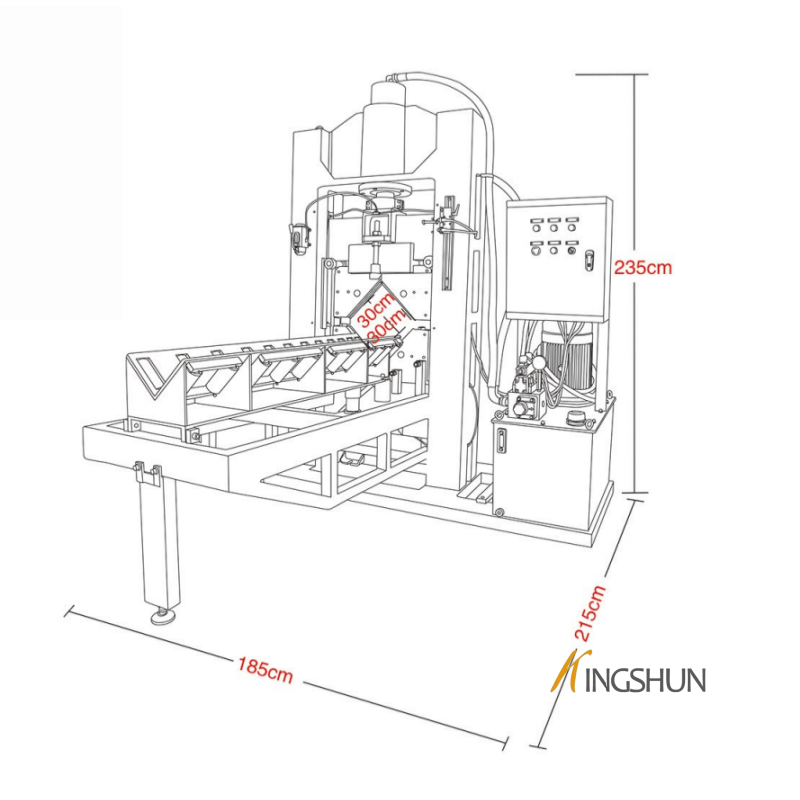

Dimensions(L×W×H) |
215X185X235CM |
|
Weight |
1.75T |
|
Power |
7.5KW |
|
Voltage |
380V |
|
Frequency |
50Hz |
|
Flow Rate |
25L |
|
Pressure |
80T |
|
Blade Feeding Speed |
5CM/S |
|
Max Working Height |
30CM |
|
Standard Processing Size |
30X30CM |
|
Max Working Width |
30CM |
|
Output/Hour |
50M2 |
|
Hydraulic Oil Grade |
46# |
|
Oil Tank Capacity |
78KG |
|
Gross Weight |
1.9T |

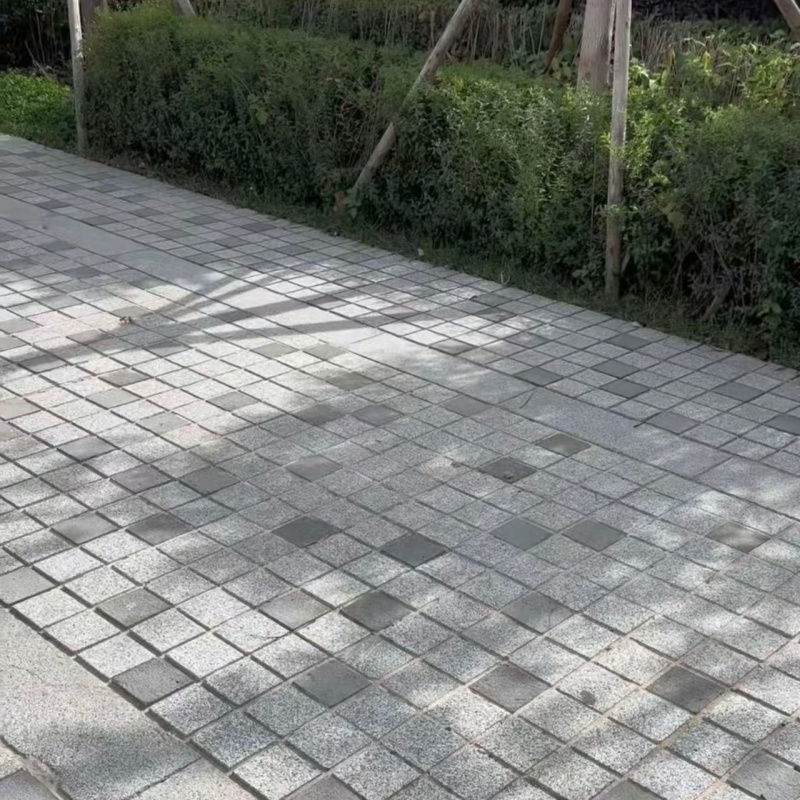

Products Application：
