Products Description:

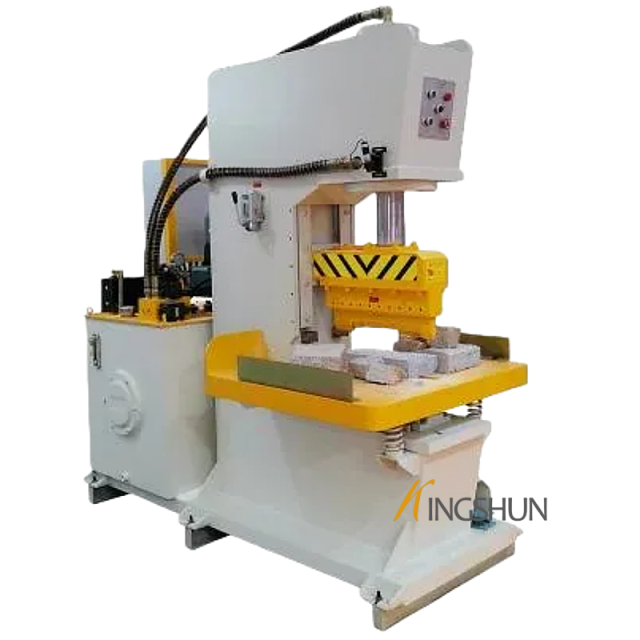

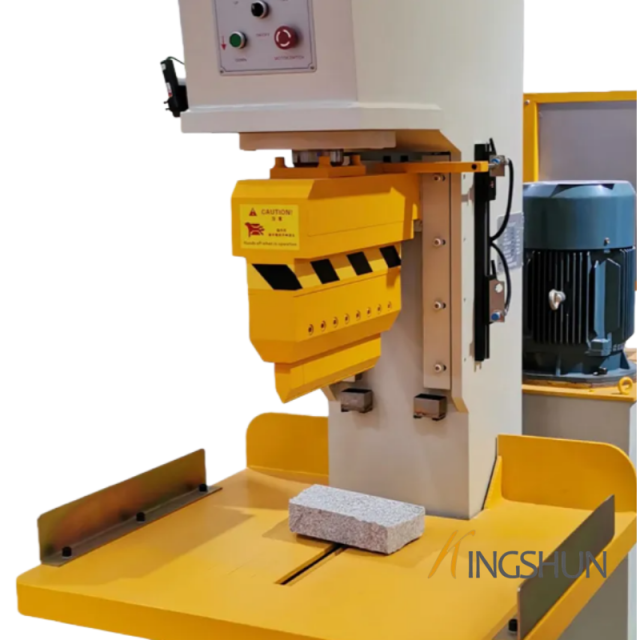

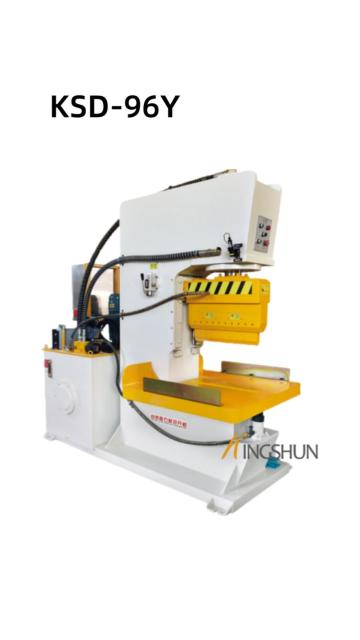

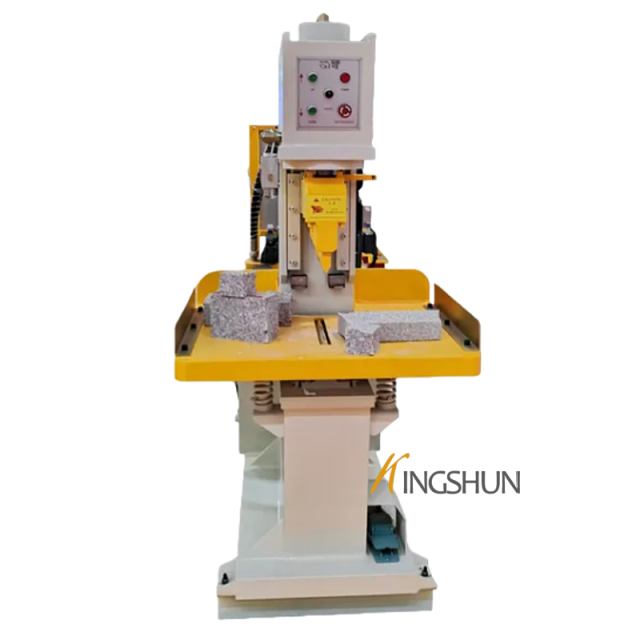

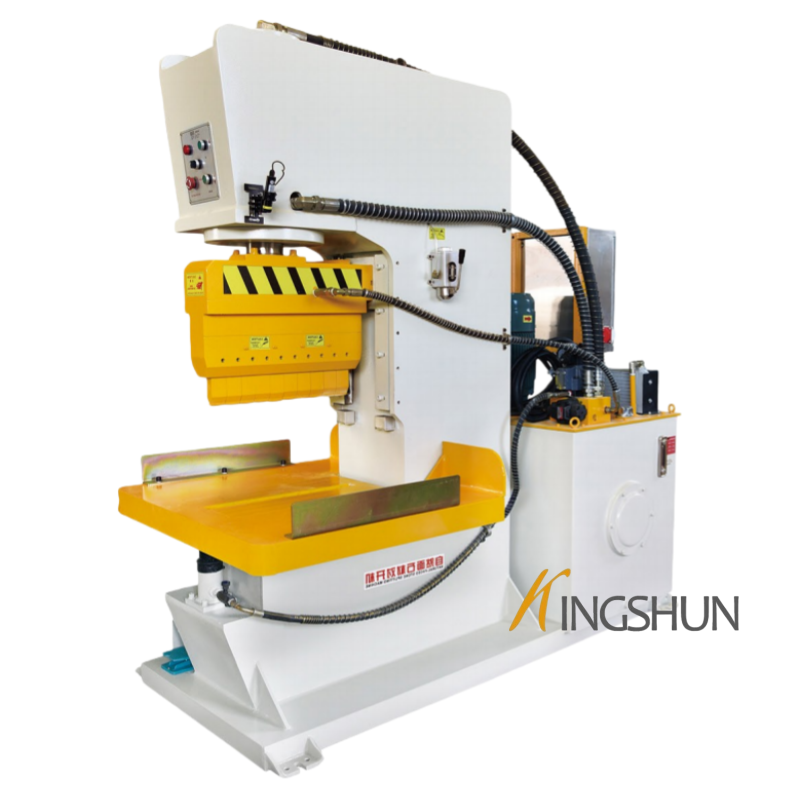

The is a powerful and efficient Stone Splitting Machine KSD-96Y designed for precision and durability in demanding environments. The machine features an advanced hydraulic system, ensuring smooth operation and maximum output. Its robust design is complemented by an intuitive control panel, making it easy to operate for both experienced operators and new users.
Products Details:


Y Stands for hydraulic blades:
| Model | KSD-96Y |

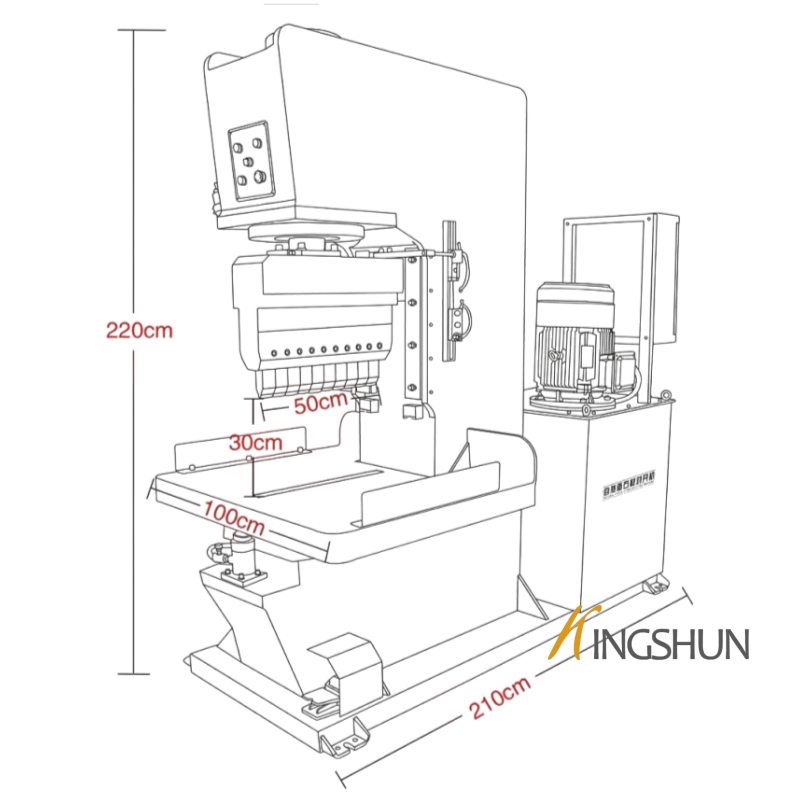

| Dimensions(L×W×H) | 210x100x220CM |
| Weight | 2.3T |
| Power | 15KW |
| Voltage | 380V |
| Frequency | 50Hz |
| Flow Rat | 80L |
| Pressure | 120T |
| Blade Feeding Speed | 15CM/S |
| Max Working Height | 30CM |
| Max Working Width | 50CM |
| Output/Hour | 90M2 |
| Hydraulic Oil Grade | 46# |
| Oil Tank Capacity | 340KG |
| Gross Weight | 2.4T |
